What is data quality

As the name suggest, it refers to the quality of our data. Quality should be defined based on your project requirements. It can be as simple as ensuring a certain column has only the allowed values present or falls within a given range of values to more complex cases like, when a certain column must match a specific regex pattern, fall within a standard deviation range, etc.

Why is it important

The quality of your data will affect the ability of your company to make intelligent and correct business decisions.

For example a business user may want to look at customer attribution using a third party marketing dataset, if for whatever reason the third party data source maybe faulty and if this goes unnoticed, it will lead to the business user making decision based on wrong data. Depending on how the data is used this can cause significant monetary damage to your business.

Another example would be machine learning systems, this is even trickier because you do not have the intuition of a human in the loop with computer systems. If there was an issue with a feature (say feature scaling was not done) and the ML model uses this feature, all the prediction will be way off since your model is using unscaled data. And if you have no ML model monitoring setup this can cause significant damage(money or other metric based) over a long period to your business.

Tutorial

In this tutorial we will build a simple data test scenario using an extremely popular data testing framework called Great Expectations

pre-requisites

docker, if you have windows home you might need to look here
pgcli
Great Expectations

simple usage

You can use great_expectations as you would any other python library. Open a python repl by typing in python in your terminal

import great_expectations as ge
import numpy as np
import pandas as pd

# ref: https://stackoverflow.com/questions/32752292/how-to-create-a-dataframe-of-random-integers-with-pandas
df_raw = pd.DataFrame(np.random.randint(0,100,size=(100, 4)), columns=list('ABCD'))

df = ge.from_pandas(df_raw)
df.expect_column_values_to_not_be_null('A')

{
  "exception_info": null,
  "expectation_config": {
    "expectation_type": "expect_column_values_to_not_be_null",
    "kwargs": {
      "column": "A",
      "result_format": "BASIC"
    },
    "meta": {}
  },
  "meta": {},
  "success": true,
  "result": {
    "element_count": 100,
    "unexpected_count": 0,
    "unexpected_percent": 0.0,
    "partial_unexpected_list": []
  }
}

# this will cause an exception since A is made of random num
# and probably has duplicates
df.expect_column_values_to_be_unique('A')

{
  "exception_info": null,
  "expectation_config": {
    "expectation_type": "expect_column_values_to_be_unique",
    "kwargs": {
      "column": "A",
      "result_format": "BASIC"
    },
    "meta": {}
  },
  "meta": {},
  "success": false,
  "result": {
    "element_count": 100,
    "missing_count": 0,
    "missing_percent": 0.0,
    "unexpected_count": 62,
    "unexpected_percent": 62.0,
    "unexpected_percent_nonmissing": 62.0,
    "partial_unexpected_list": [
      37,
      62,
      72,
      53,
      22,
      61,
      95,
      21,
      64,
      59,
      77,
      53,
      0,
      22,
      24,
      46,
      0,
      16,
      78,
      60
    ]
  }
}

The result section of the response JSON has some metadata information about the column and what percentage failed the expectation. But note that here we are testing by loading the data within the application, in the next section we will see how we can create exceptions that are run on databases. Now that we have a basic understanding on what great_expectations does, let’s look at how to set it up, writes test cases for data from a postgres database that can be grouped together and run.

setup

Start a local postgres docker using the below command on your terminal

docker run --name pg_local -p 5432:5432 -e POSTGRES_USER=sde -e POSTGRES_PASSWORD=password -e POSTGRES_DB=data_quality -d postgres:12.2

The docker run is used to run a docker container, we also specify the port -p, user, password and database for the postgres container. We also specify the container to use postgres:12.2. Now we can start writing queries on the postgres container, let’s log into it as shown below

pgcli -h localhost -U sde -p 5432 -d data_quality
# -h host, -U user, -p port, -d database, these are values from the docker run command above

Let’s create a simple app.order table which we will use as our data source, to be tested

CREATE SCHEMA app;

CREATE TABLE IF NOT EXISTS app.order(
    order_id varchar(10),
    customer_order_id varchar(15),
    order_status varchar(20),
    order_purchase_timestamp timestamp
);

INSERT INTO app.order(order_id, customer_order_id, order_status, order_purchase_timestamp)
VALUES ('order_1','customer_1','delivered','2020-07-01 10:56:33');

INSERT INTO app.order(order_id, customer_order_id, order_status, order_purchase_timestamp)
VALUES ('order_2','customer_1','delivered','2020-07-02 20:41:37');

INSERT INTO app.order(order_id, customer_order_id, order_status, order_purchase_timestamp)
VALUES ('order_3','customer_2','shipped','2020-07-03 11:33:07');

Defining test cases (aka expectations)

In great expectations, the test cases for your data source are grouped into an expectations. In your terminal run the following commands to setup the great_expectations folder structure.

mkdir data_quality
great_expectations init -d data_quality
# OK to proceed? [Y/n]: Y
# Would you like to configure a Datasource? [Y/n]: Y
# choose SQL, Postgres,
# [my_postgres_db]: data_quality
# enter the configuration from the docker command above

It should look like the image shown below

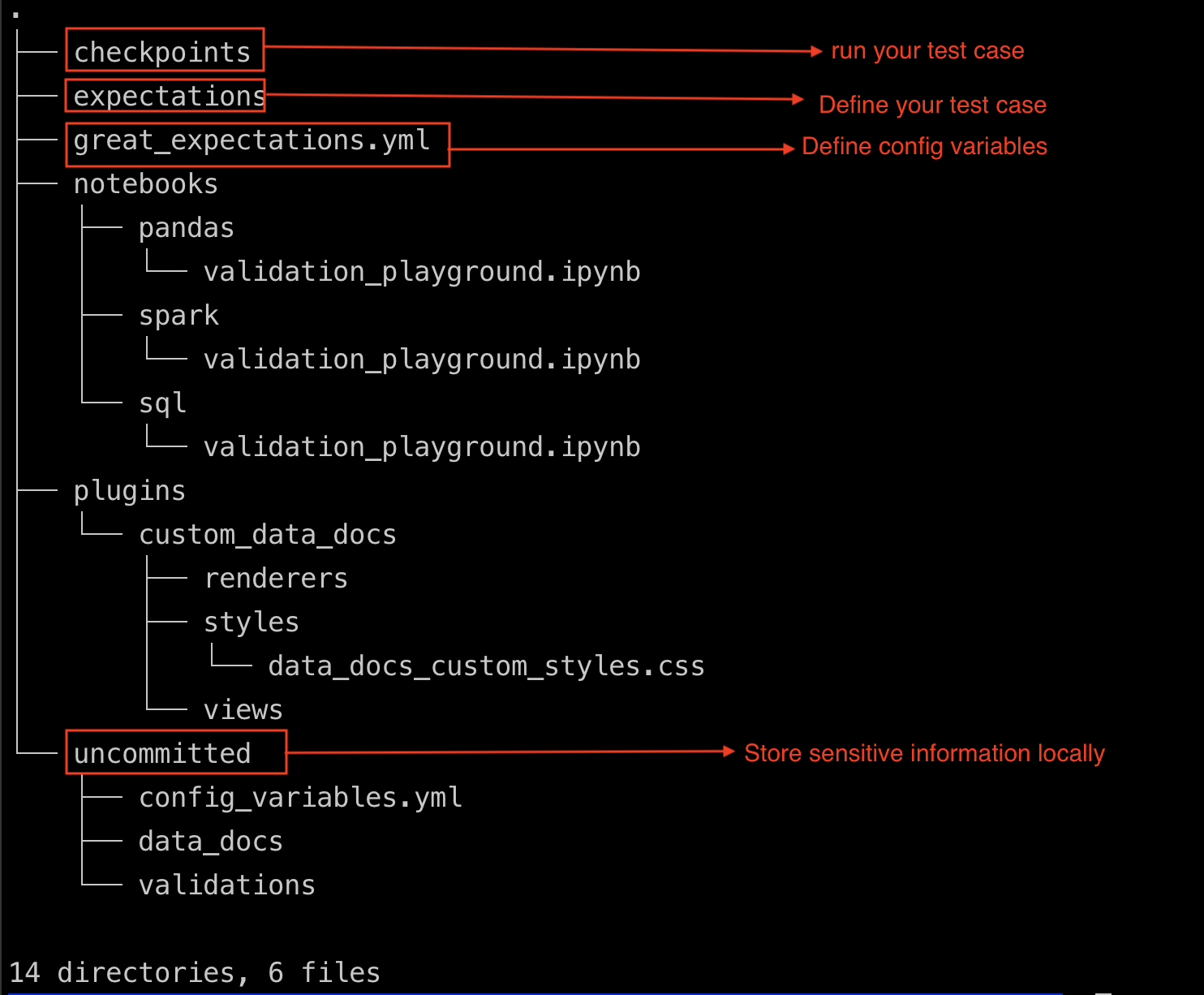

And your project folder structure should look like the image shown below

Let’s create a new set of expectations

great_expectations suite new
# In the prompt, use the app.order table and go with the default warning.json
# this will also start the data doc static site
# in another terminal look at the content of the warning below
cat expectations/app/order/warning.json

You will see something like shown below

{
  "data_asset_type": "Dataset",
  "expectation_suite_name": "app.order.warning",
  "expectations": [
    {
      "expectation_type": "expect_table_row_count_to_be_between",
      "kwargs": {
        "max_value": 3,
        "min_value": 2
      },
      "meta": {
        "BasicSuiteBuilderProfiler": {
          "confidence": "very low"
        }
      }
    },{
      "expectation_type": "expect_column_value_lengths_to_be_between",
      "kwargs": {
        "column": "order_id",
        "min_value": 1
      },
      "meta": {
        "BasicSuiteBuilderProfiler": {
          "confidence": "very low"
        }
      }
    }
    ],
    "columns": {
      "customer_order_id": {
        "description": ""
      },
      "order_id": {
        "description": ""
      },
      "order_purchase_timestamp": {
        "description": ""
      },
      "order_status": {
        "description": ""
      }
    },
    "great_expectations.__version__": "0.11.8",
    "notes": {
      "content": [
        "#### This is an _example_ suite\n\n- This suite was made by quickly glancing at 1000 rows of your data.\n- This is **not a production suite**. It is meant to show examples of expecta
tions.\n- Because this suite was auto-generated using a very basic profiler that does not know your data like you do, many of the expectations may not be meaningful.\n"
      ],
      "format": "markdown"
    }
  }
}

As the content says, this is a simple expectation configuration created by great expectations based on scanning first 1000 rows of your dataset. Let’s view this in the data doc site, since these are static website you can just open them directly in your web browser, let’s open the file /great_expectations/uncommitted/data_docs/local_site/index.html

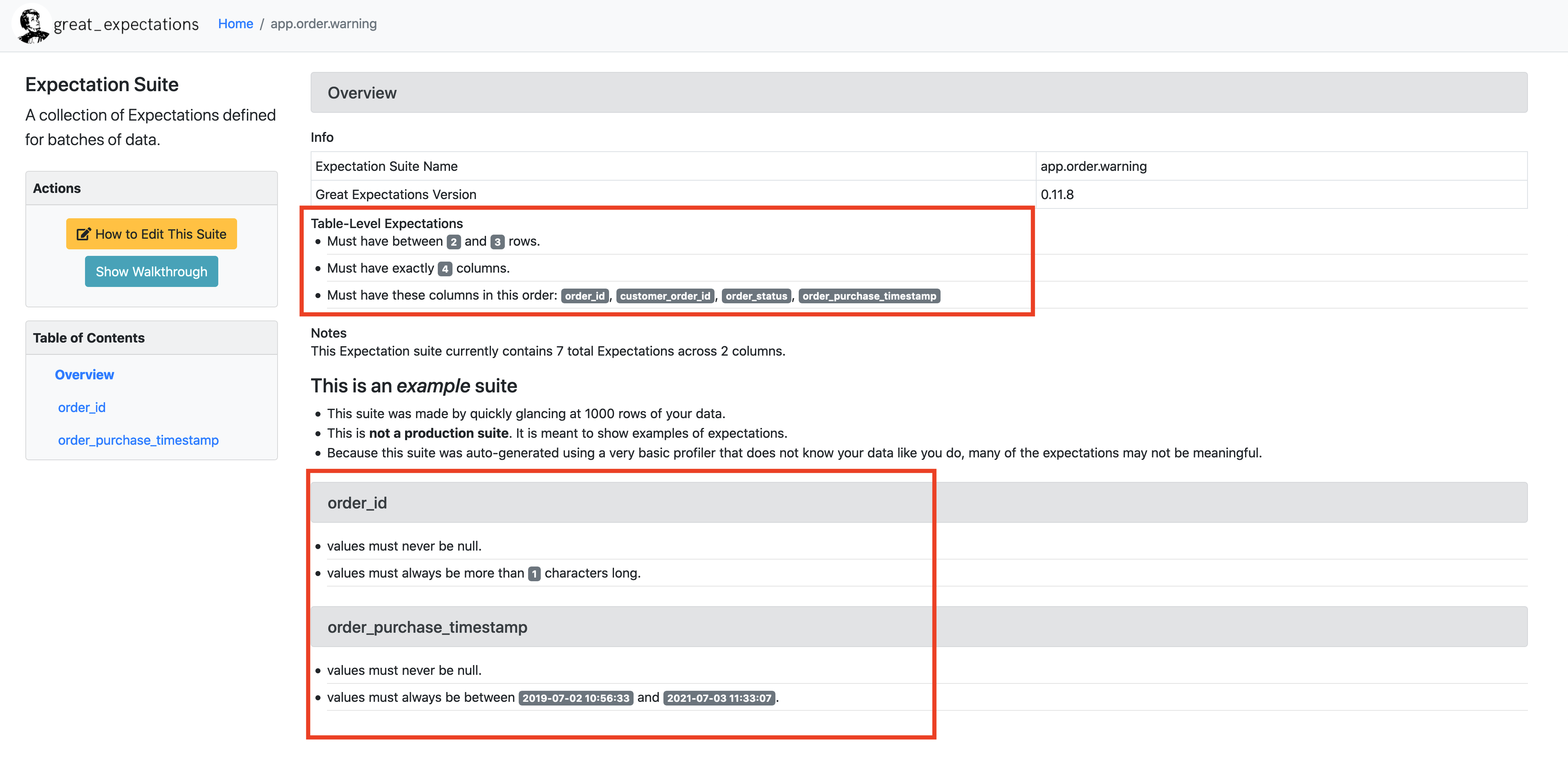

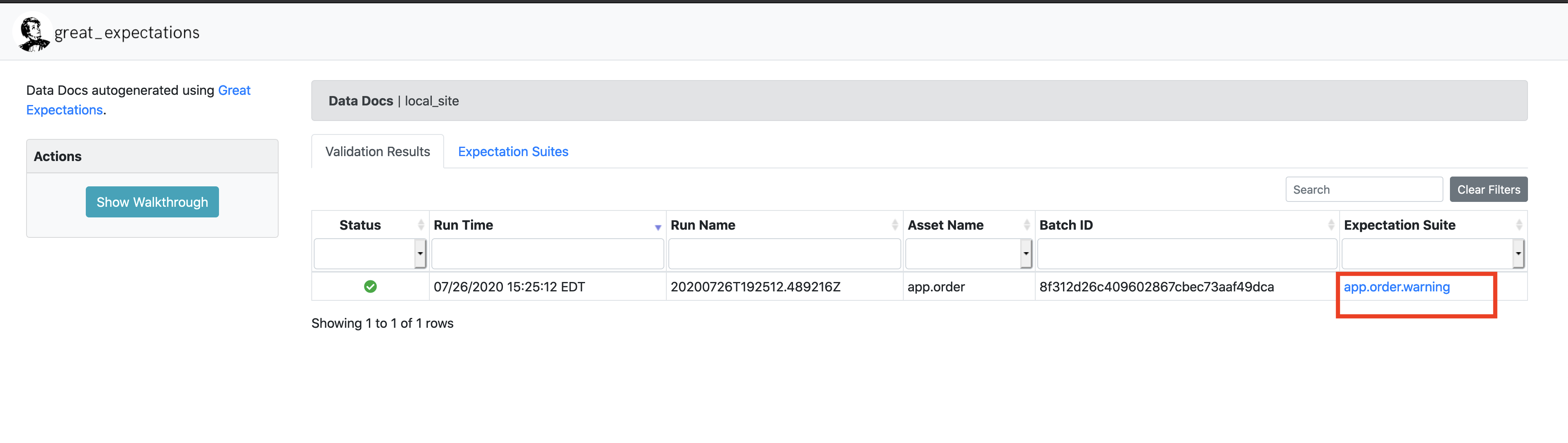

When you click on the app.order.warning expectation suite, you will see the sample expectation shown in human readable format in the UI

Now let’s create our own expectation file, and call it error

great_expectations suite new
# lets call it error

This will also start a jupyter notebook, feel free to ctrl + c to close that.

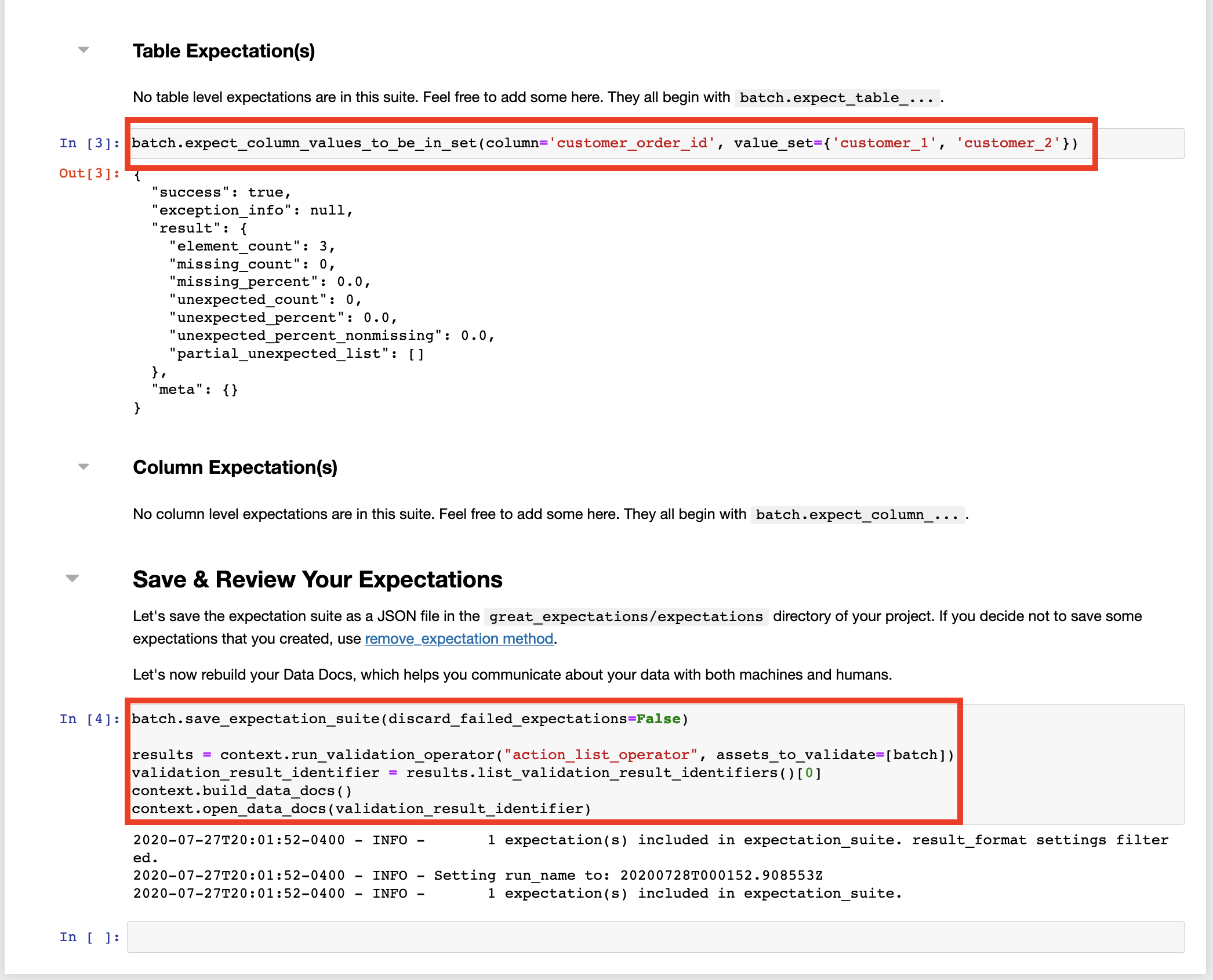

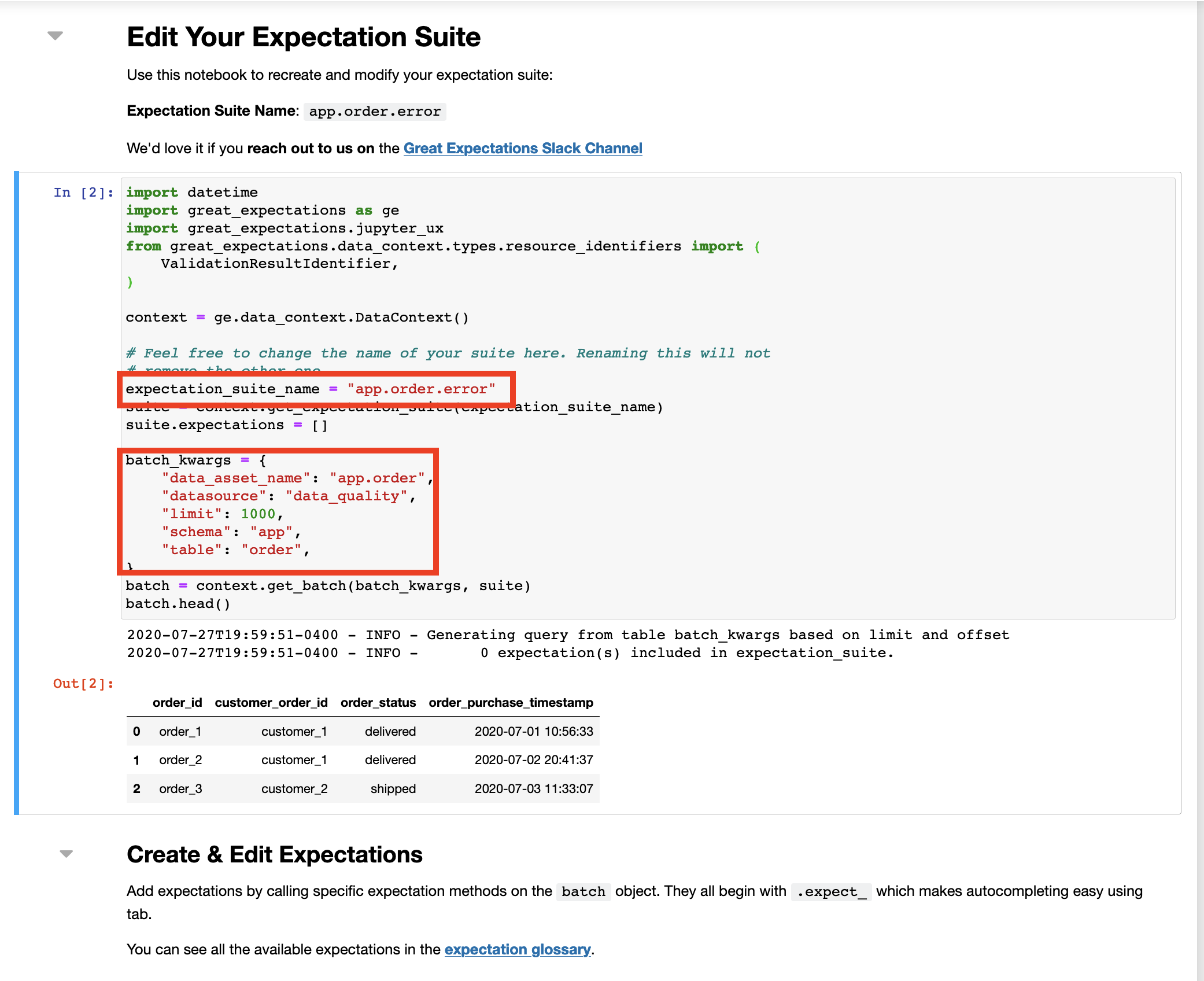

We can edit the expectations using the command below, which opens a jupyter notebook where you can edit and save your changes.

great_expectations suite edit app.order.error

Here you will see your expectation name, batch_kwargs that define where the data is. To keep it simple let’s delete all auto generated test cases and only test if the customer_order_id column is in a set with the below values

{'customer_1', 'customer_2'}

using the expect_column_values_to_be_in_set function on your batch object.

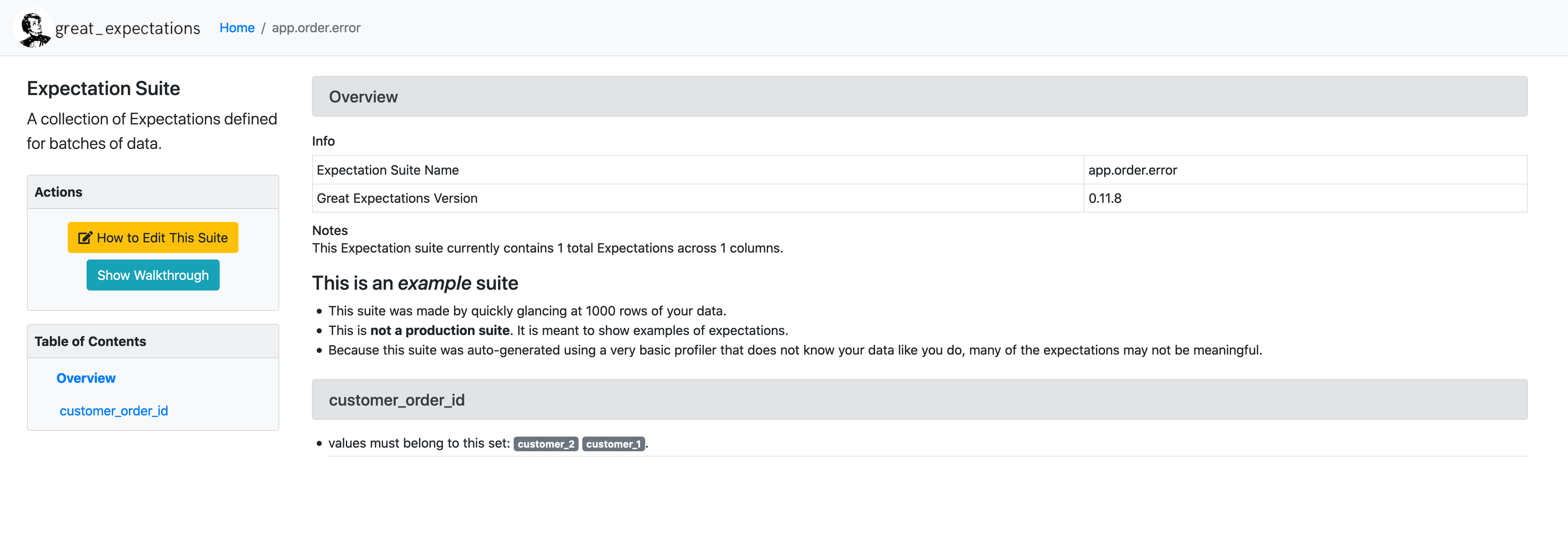

After you save the notebook, you will be taken to the newly generated data documentation UI page, where you will see the expectation you defined in human readable form.

Running your test cases (aka checkpoint)

Now its time to run our expectations, In great expectations running a set of expectations(test cases) is called a checkpoint. We have to create a checkpoint and define which expectations to run. Lets create a new checkpoint called first_checkpoint for our app.order.error expectation as shown below.

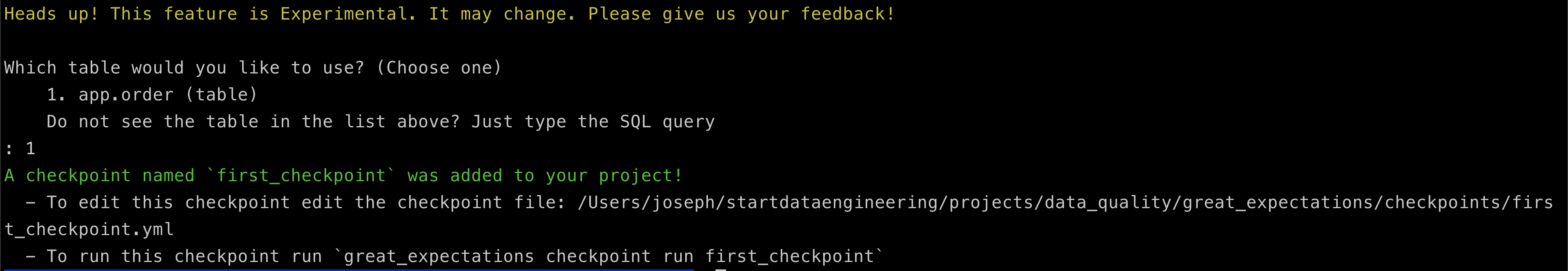

great_expectations checkpoint new first_checkpoint app.order.error

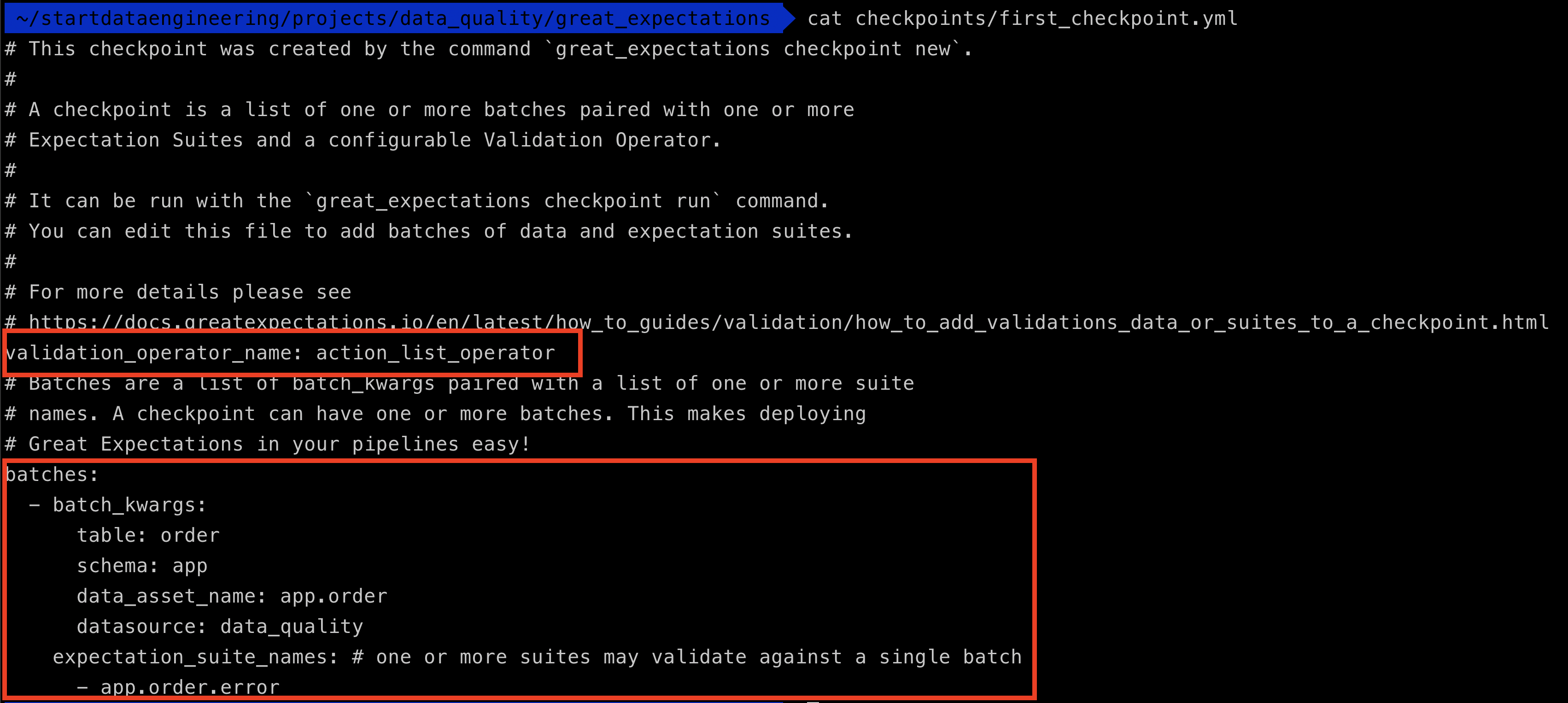

Let’s take a look at our checkpoint definition, by looking at the yml file contents

cat checkpoints/first_checkpoint.yml

You can see the validation_operator_name which points to a definition in great_expectations.yml (which we will see next) and the batches where you defined the data source and what expectations to run against it (currently we only have it set up for app.order.error).

Let’s take a look at the validation_operators section in great_expectations.yml, this defines what needs to be done when a checkpoint is run with the action_list_operator as its validator.

cat great_expectations.yml

You can see out action_list_operator defined and all the actions it contains.

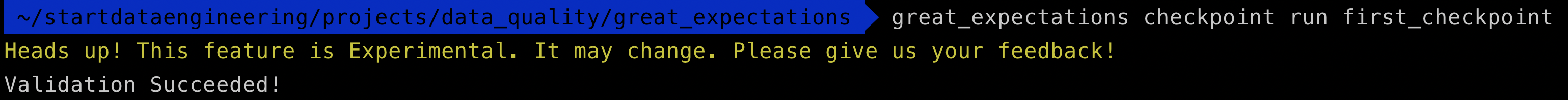

Let’s run our checkpoint using

great_expectations checkpoint run first_checkpoint

Now let’s see what happens when a checkpoint fails. Let’s login to postgres using pgcli and insert a customer id customer_10, that we know will fail because we have specified in our expectation that customer_id column should only have the values

{'customer_1', 'customer_2'}

pgcli -h localhost -U sde -p 5432 -d data_quality

INSERT INTO app.order(order_id, customer_order_id, order_status, order_purchase_timestamp)
VALUES ('order_2','customer_10','delivered','2020-07-10 20:41:37');

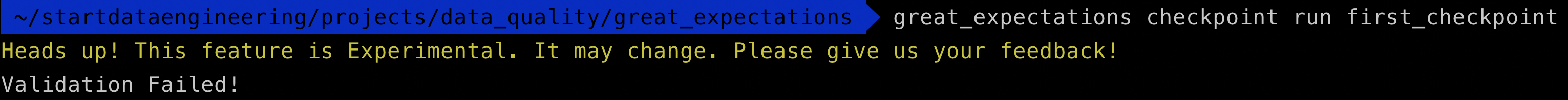

Run checkpoint again, this time it should fail

great_expectations checkpoint run first_checkpoint

As expected it failed. Right now the result of checkpoint is stored locally in the uncommited folder, which is not pushed to the source repo. But we can configure the results of the validation to be stored in a database such as postgres. To do this, we add the postgres as a valid validations_postgres_store in the great_expectations.yml file.

vim great_expectations.yml

Let’s add a new validations_postgres_store under the stores: section and change validations_store_name to validations_postgres_store to let great_expectations know that we are using a new store (postgres db in our case) to store the results of our validation.

stores:


  validations_store:
    class_name: ValidationsStore
    store_backend:
      class_name: TupleFilesystemStoreBackend
      base_directory: uncommitted/validations/
+ validations_postgres_store:
+   class_name: ValidationsStore
+   store_backend:
+     class_name: DatabaseStoreBackend
+     credentials: ${data_quality}


-validations_store_name: validations_store
+validations_store_name: validations_postgres_store

Verify that the store has been added as shown below

great_expectations store list

 - name: expectations_store
   class_name: ExpectationsStore
   store_backend:
     class_name: TupleFilesystemStoreBackend
     base_directory: expectations/

 - name: validations_store
   class_name: ValidationsStore
   store_backend:
     class_name: TupleFilesystemStoreBackend
     base_directory: uncommitted/validations/

 - name: validations_postgres_store
   class_name: ValidationsStore
   store_backend:
     class_name: DatabaseStoreBackend
     credentials:
       database: data_quality
       drivername: postgresql
       host: localhost
       password: ******
       port: 5432
       username: sde

 - name: evaluation_parameter_store
   class_name: EvaluationParameterStore

let’s run the checkpoint again to see if our validation results are being stored in postgres.

great_expectations checkpoint run first_checkpoint
# Validation Failed!

pgcli -h localhost -U sde -p 5432 -d data_quality

In postgres, great_expectations will create a table called ge_validations_store in the public schema.

\x on -- pretty display
select expectation_suite_name, value  from public.ge_validations_store order by run_time desc limit 1;

You will see the JSON below, which shows the results of the expectation that was run at checkpoint. You will see detailed report of the failure, cause by customer_id_10 under the partial_unexpected_counts value.

{
  "statistics":
  {
    "evaluated_expectations": 1,
    "successful_expectations": 0,
    "unsuccessful_expectations": 1,
    "success_percent": 0.0
  },
  "meta":
  {
    "great_expectations.__version__": "0.11.8",
    "expectation_suite_name": "app.order.error",
    "run_id":
    {
      "run_time": "2020-07-28T00:41:46.026887+00:00",
      "run_name": "20200728T004146.026887Z"
    },
    "batch_kwargs":
    {
      "table": "order",
      "schema": "app",
      "data_asset_name": "app.order",
      "datasource": "data_quality"
    },
    "batch_markers":
    {
      "ge_load_time": "20200728T004145.998210Z"
    },
    "batch_parameters": null,
    "validation_time": "20200728T004146.027301Z"
  },
  "results":
  [
    {
      "result":
      {
        "element_count": 4,
        "missing_count": 0,
        "missing_percent": 0.0,
        "unexpected_count": 1,
        "unexpected_percent": 25.0,
        "unexpected_percent_nonmissing": 25.0,
        "partial_unexpected_list": ["customer_10"],
        "partial_unexpected_index_list": null,
        "partial_unexpected_counts": [{"value": "customer_10", "count": 1}]
      },
      "exception_info":
      {
        "raised_exception": false,
        "exception_message": null,
        "exception_traceback": null
      },
      "meta": {},
      "success": false,
      "expectation_config":
      {
        "expectation_type": "expect_column_values_to_be_in_set",
        "meta": {},
        "kwargs":
        {
          "column": "customer_order_id",
          "value_set": ["customer_2", "customer_1"],
          "result_format": {"result_format": "SUMMARY"}}
      }
    }
  ],
  "evaluation_parameters": {},
  "success": false
}

scheduling

Now that we have seen how to run tests on our data, we can run our checkpoints from bash or a python script(generated using great_expectations checkpoint script first_checkpoint). This lends itself to easy integration with scheduling tools like airflow, cron, prefect, etc.

Production deploy

When deploying in production, you can store any sensitive information(credentials, validation results, etc) which are part of the uncommitted folder in cloud storage systems or databases or data stores depending on your infratructure setup. Great Expectations has a lot of options for storage as shown here

When not to use a data quality framework

This tool is great and provides a lot of advanced data quality validation functions, but it adds another layer of complexity to your infrastructure that you will have to maintain and trouble shoot in case of errors. It would be wise to use it only when needed.

In general

Do not use a data quality framework, if simple SQL based tests at post load time works for your use case.
Do not use a data quality framework, if you only have a few (usually < 5) simple data pipelines.

Conclusion

Hope this article gives you an idea of how to use the great_expectations data quality framework, when to use it and when not to use it. Let me know if you have any questions or comments in the comment section below.
