How to Identify and Fix Small Files Problem with Spark & Iceberg

Introduction

Large datasets are stored as individual files. Many small files per dataset make reads expensive!

You might be wondering.

Why are too many small files a problem? & How to identify this issue on Spark UI?

If there’s a strategy to prevent creating tiny files in the first place

Is it practical to consolidate them through an independent process? If yes, how?

Imagine being able to set up systems to create optimally sized files.

Ensure you don’t get pinged by stakeholders: “Hey, this data is slow, can you check?”

By the end of this post, you will know how to detect and fix the problem of small files.

If you don’t have a vendor, run the rewrite_data_files function

If you have a vendor, they take care of fixing the small files problem.

If not, you can use the Iceberg function rewrite_data_files in your pipeline or as a scheduled manitenance pipeline.

flowchart TD
    A[Vendor?] -->|Y| B[Check file sizes if you notice read performance drop]
    A -->|N| C[Stream ingestion?]
    C -->|Y| D[Schedule a maintenance job]
    C -->|N| E[You control the pipeline code?]
    E -->|Y| F[Can the pipeline afford extra runtime?]
    E -->|N| D
    F -->|Y| H[Run maintenance function as part of pipeline]
    F -->|N| D

Code Setup

Follow along with code using this setup instructions.

We use Apache Iceberg in this post, but the concepts apply to delta as well.

Many small files => Spark wastes time opening them

Spark excels at processing large data. Opening many small files wastes compute time ($$$).

For each file to read, Spark will:

1. Read parquet footer metadata.
2. Identify the data chunk to read, based on metadata and the query to run.
3. Read the required data chunk from the parquet file.

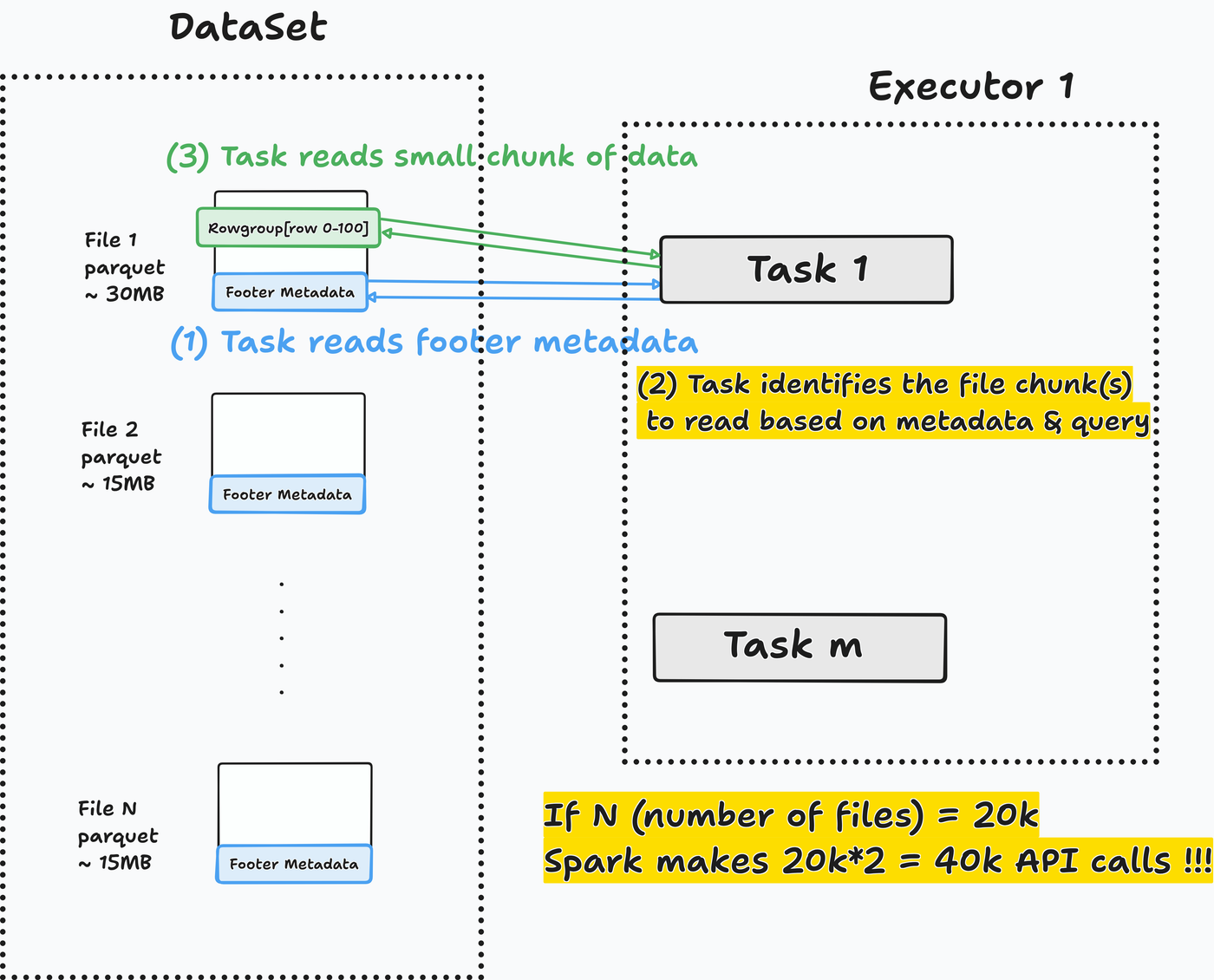

Small Files I/O Problem

Let’s run a query to check how it performs.

%%sql
SELECT
  MONTH (l_receiptdate) AS receipt_month,
  COUNT(*) AS num_line_items
FROM lineitem
GROUP BY 1 ORDER BY 2 desc LIMIT 10

1

SQL magic to run Spark SQL

Go to the SQL/DataFrame tab in the Spark UI at http://localhost:4040 and select the first read stage.

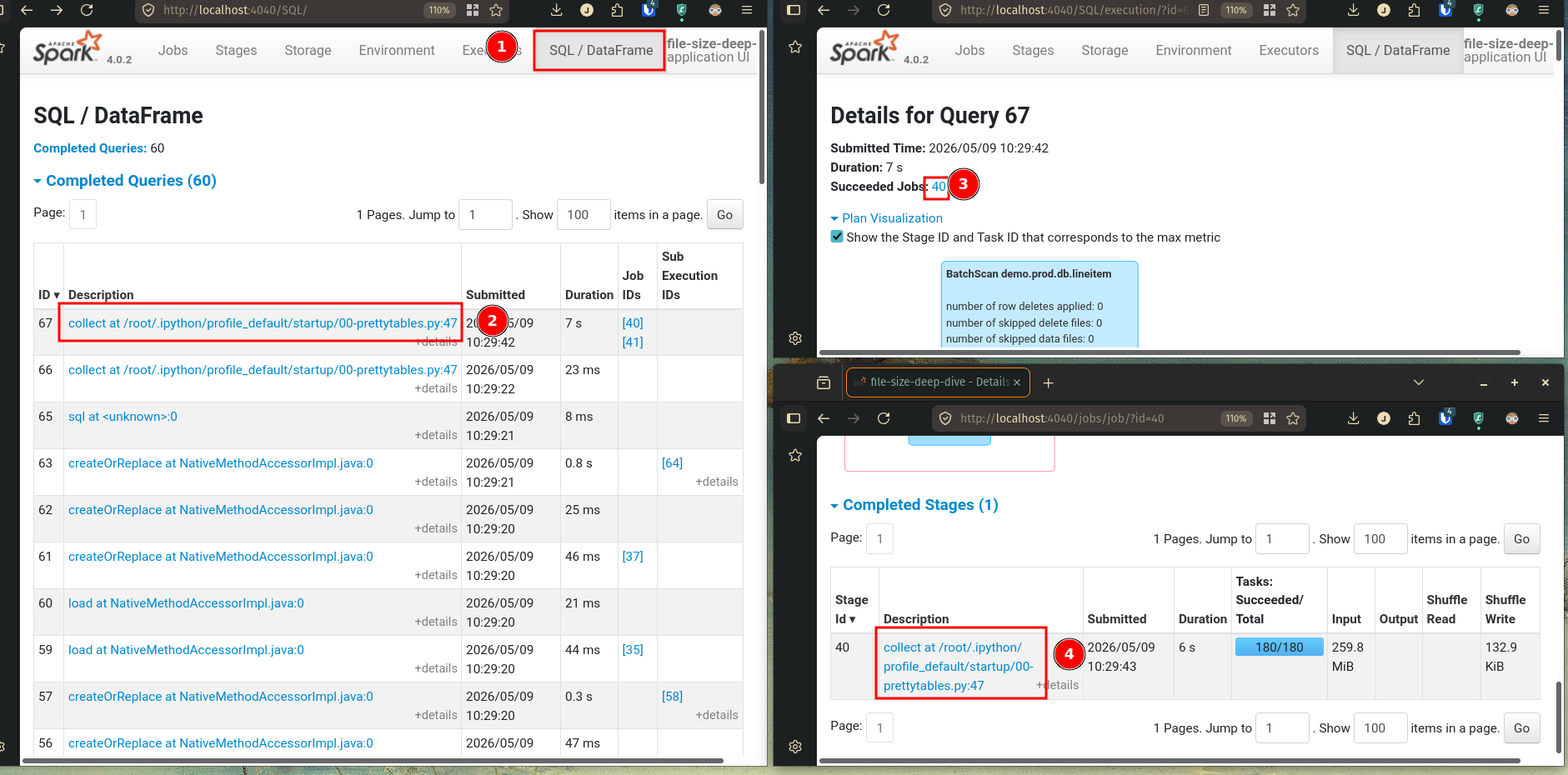

Get to stage tab from sql/dataframe tab

In the stages tab, click on event timeline. Many small tasks (1 task = 1 green chunk) indicate a many-small-files (or partitions) problem.

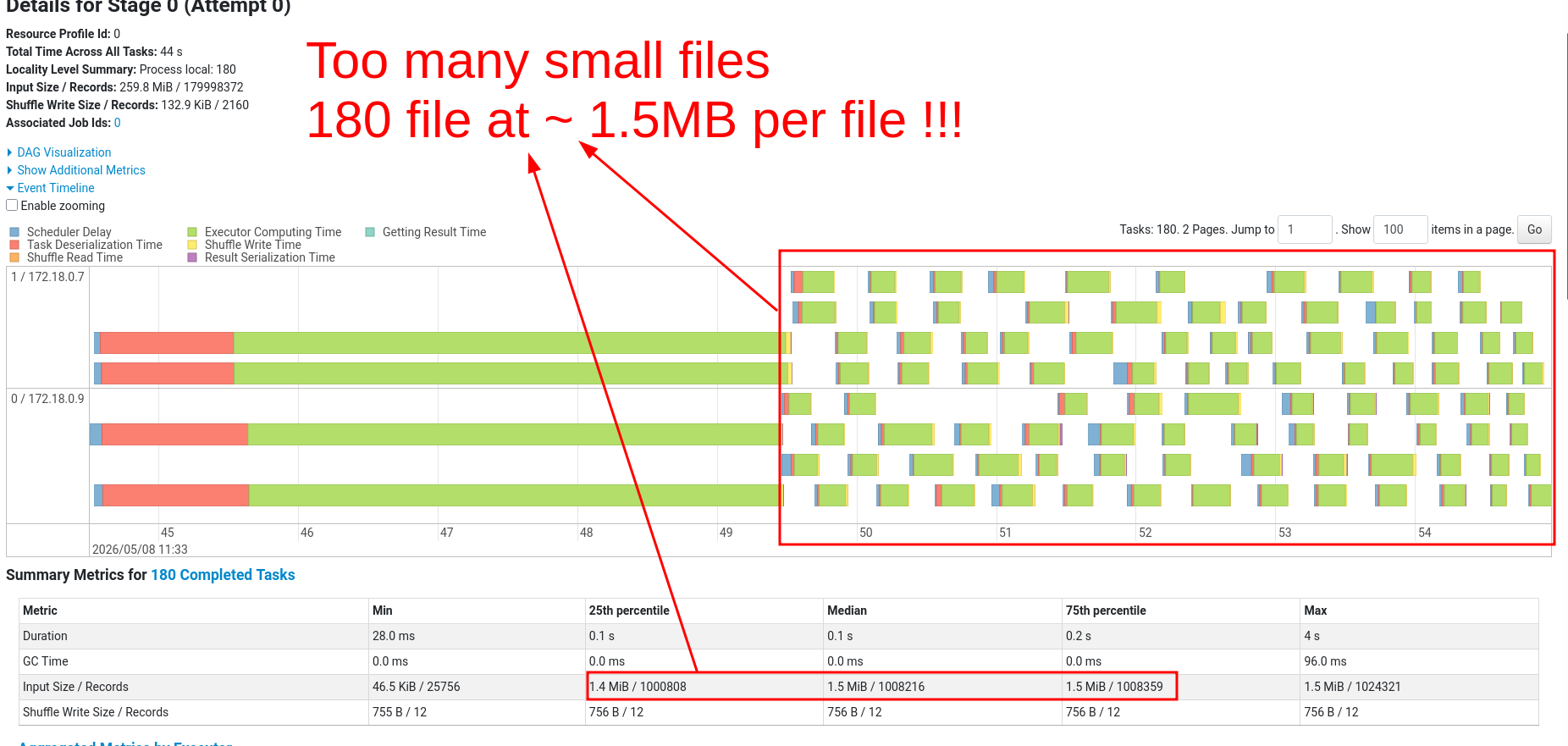

Many small green chunks = many small files

1.5MB is the average input size, from the summary section. This is tiny!

Recommended optimal file size is between 512MB and 1GB.

The rewrite_data_files function is the simplest fix

Table format maintenance functions combine small files into optimally sized files.

1. Apache Iceberg has rewrite_data_files
2. Delta Lake has optimize

Let’s see how rewrite_data_files works.

%%sql
CREATE TABLE prod.db.lineitem_resized
AS SELECT * FROM prod.db.lineitem;

1

Create a new table

spark.sql("""CALL demo.system.rewrite_data_files('prod.db.lineitem_resized')""")

The maintenance function combines small files into optimally sized files (default size: 512 MB).

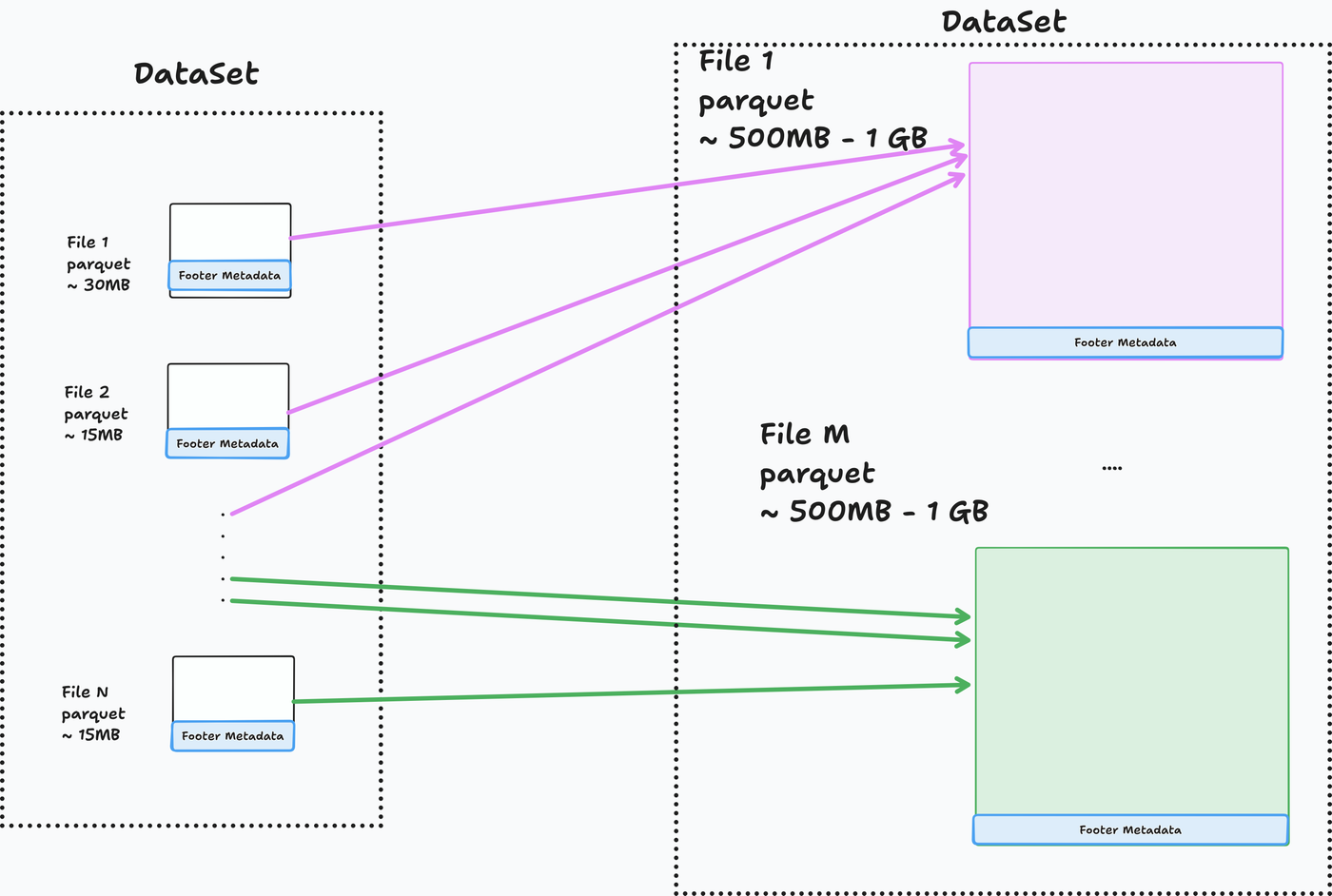

Combining small files to 512MB files

Now Spark can concentrate on processing the data.

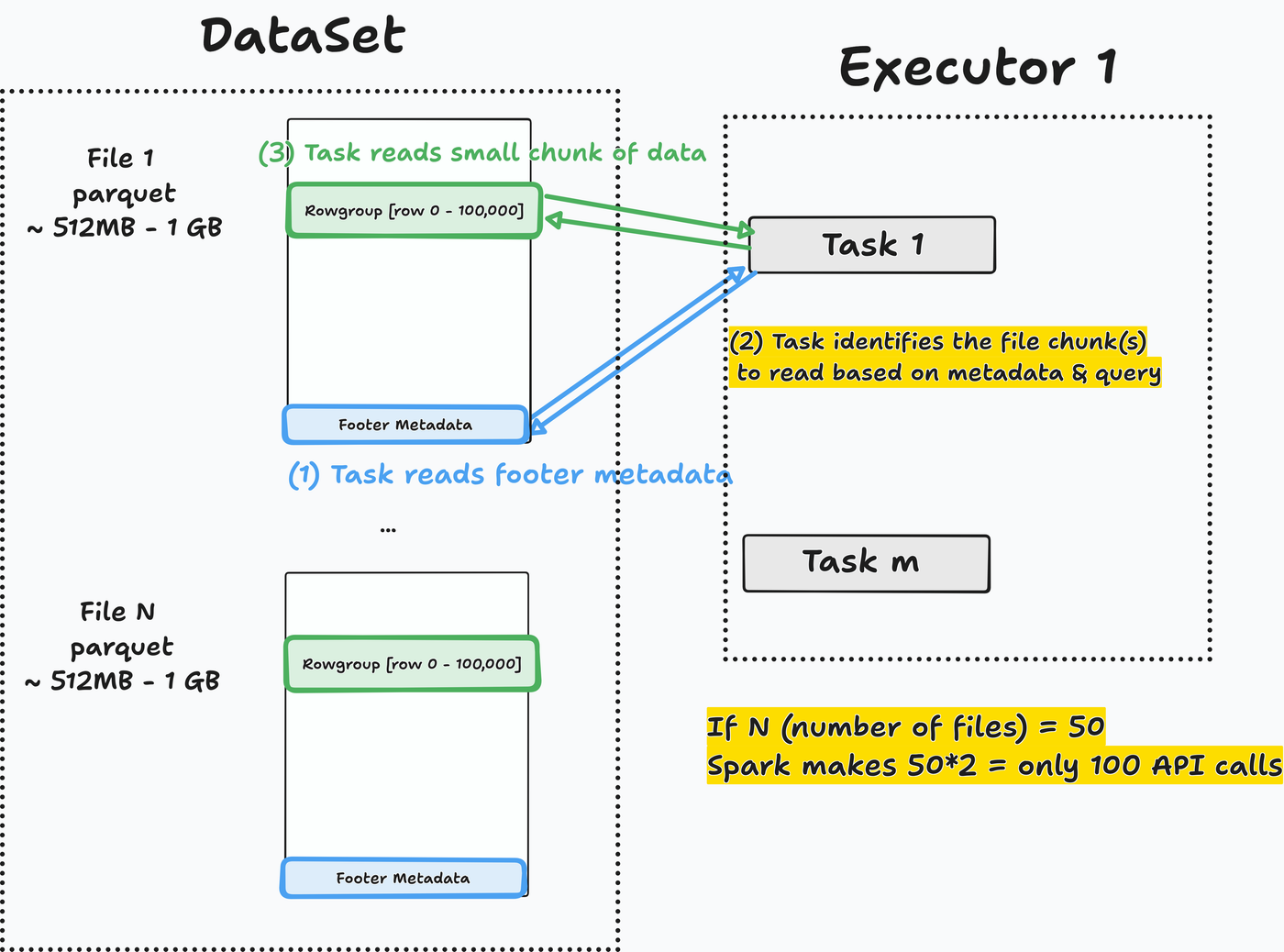

Optimal Files I/O

Re-trying our query on the optimized table.

%%sql
SELECT
  MONTH (l_receiptdate) AS receipt_month,
  COUNT(*) AS num_line_items
FROM lineitem_resized
GROUP BY 1 ORDER BY 2 desc LIMIT 10

Go to the SQL/DataFrame tab in the Spark UI at http://localhost:4040 and select the first read stage for this job.

In the Stages tab, we can see the task event time for longer-running tasks.

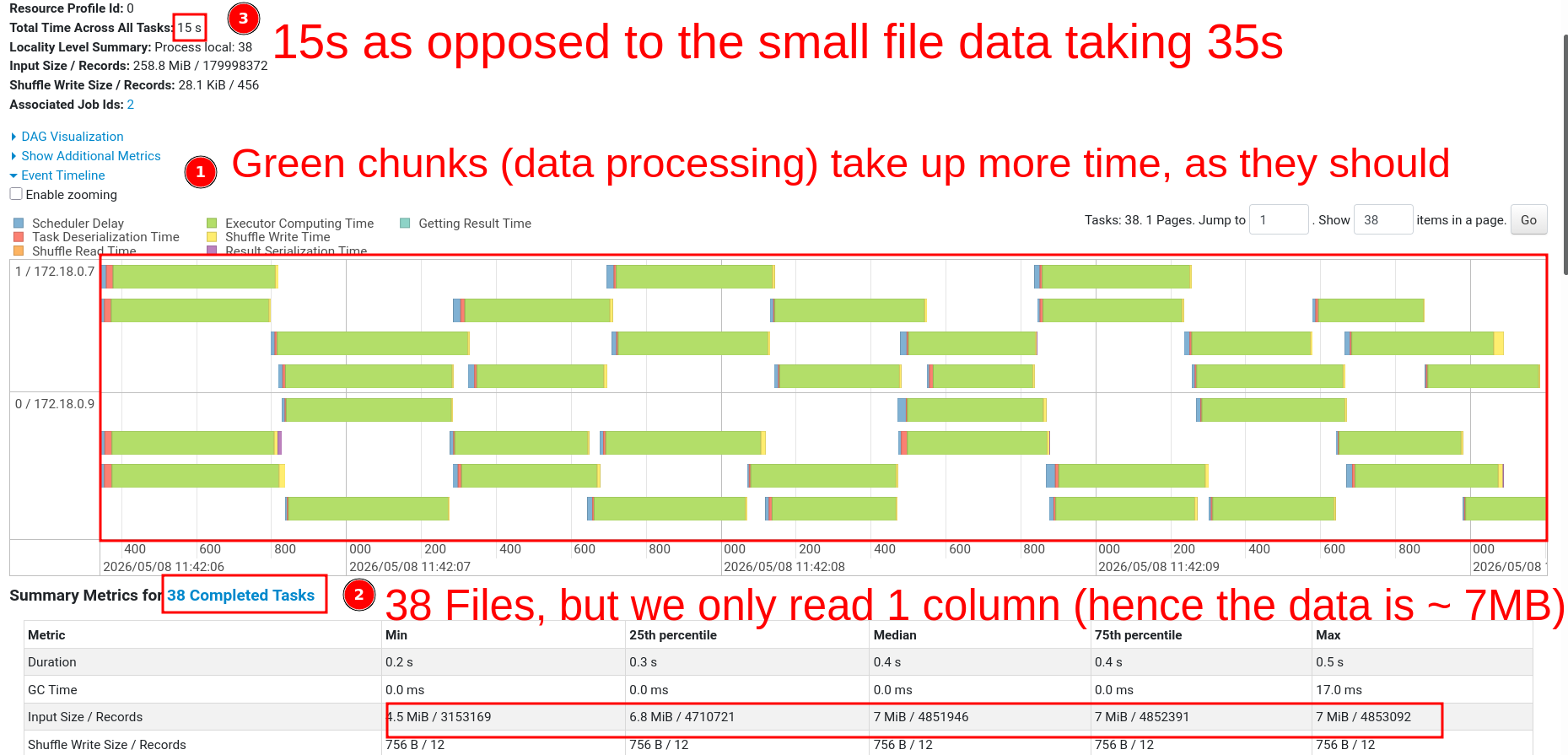

Larger green chunks = Spark processing data

Processing time dropped by 67% (45s → 15s).

Note

If you don’t own the pipeline or can’t afford a longer runtime, schedule a maintenance job. When possible, run maintenance as part of ETL.

The maintenance function includes an option to target only specific partitions. And an optional sort order when optimizing file sizes (docs).

E.g., run a daily maintenance function targeting files inserted only in the prior day.

Partition data before insert

Inserting into a partitioned table does not guarantee optimal file size

Let’s see if inserting data into partitioned tables will write files of optimal size.

%%sql
CREATE TABLE
  IF NOT EXISTS prod.db.lineitem_part_year (
    l_orderkey BIGINT,
    l_partkey BIGINT,
    l_suppkey BIGINT,
    l_linenumber INT,
    l_quantity DECIMAL(15, 2),
    l_extendedprice DECIMAL(15, 2),
    l_discount DECIMAL(15, 2),
    l_tax DECIMAL(15, 2),
    l_returnflag STRING,
    l_linestatus STRING,
    l_shipdate DATE,
    l_commitdate DATE,
    l_receiptdate DATE,
    l_shipinstruct STRING,
    l_shipmode STRING,
    l_comment STRING
  ) USING iceberg PARTITIONED BY (YEAR (l_shipdate)) TBLPROPERTIES (
    'format-version' = '2'
  );

%%sql
INSERT INTO prod.db.lineitem_part_year
SELECT * FROM prod.db.lineitem;

table_name = 'prod.db.lineitem_part_year'
print_file_sizes(table_name)

1

print_file_sizes is a function we define at setup

#	file_path	file_size_mb	writer_task
1	.../l_shipdate_year=1994/...00001-00001.parquet	99.98	219
2	.../l_shipdate_year=1994/...00002-00001.parquet	100.00	220
3	.../l_shipdate_year=1993/...00003-00001.parquet	100.01	206

The Iceberg writer task only allows ~384 MB (ref)of memory before writing data to the output file. This is set with the property spark.sql.iceberg.advisory-partition-size.

Writing to parquet results in 4x compression (data-dependent), so 384 MB in-memory becomes a 100 MB file.

There may be cases where the 384 MB goes to multiple partitions (thus, file sizes will be smaller than 100 MB)

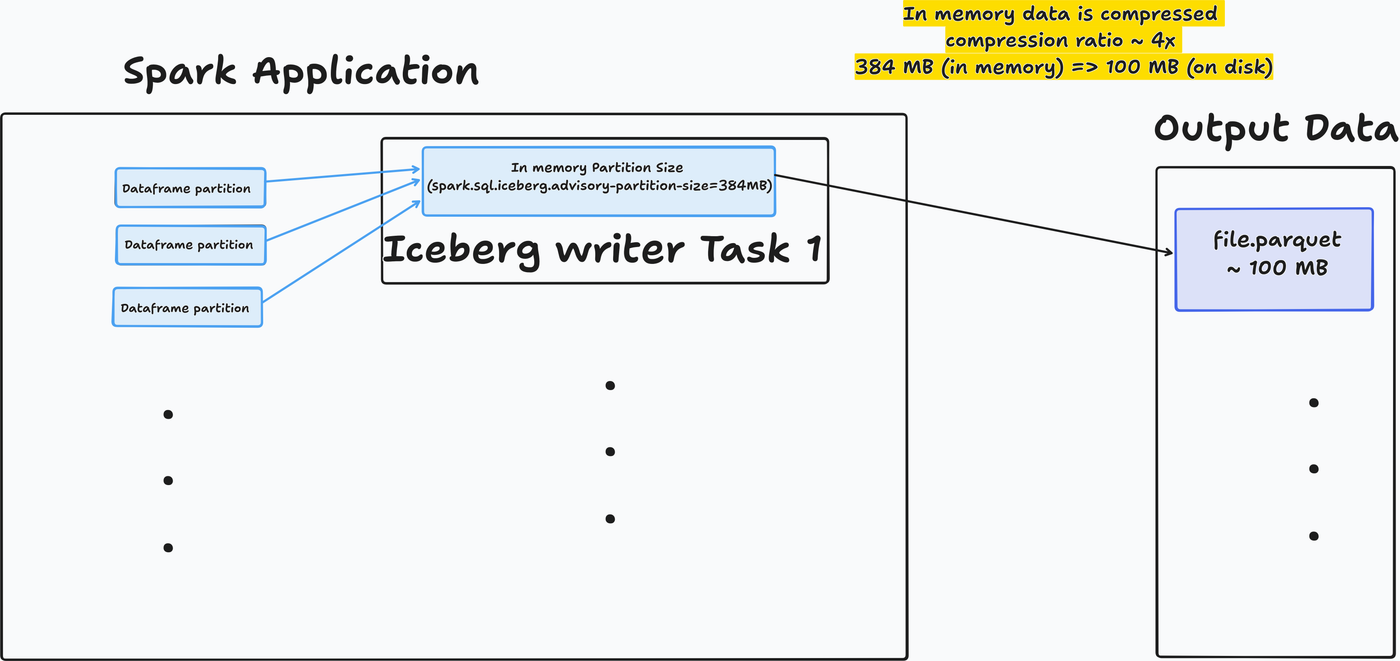

Iceberg writer in-memory to file compression

Check out the input size (~350 MB) to output size (~100 MB) in the task metrics section of the stages tab.

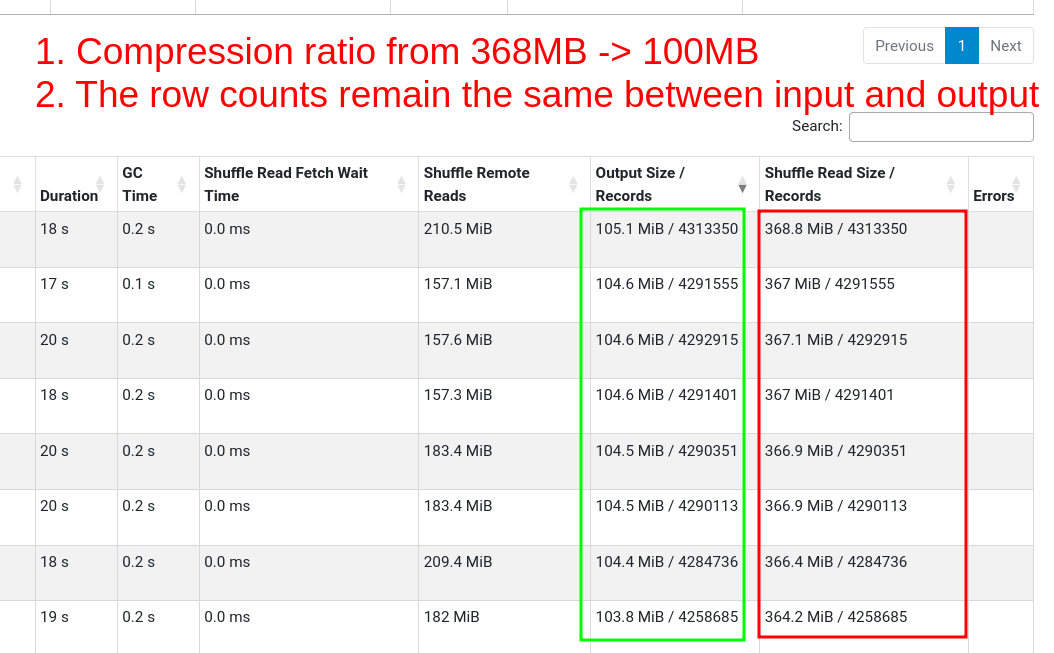

Task metrics: in-memory to file compression

Increasing task memory does not guarantee optimal file size

Let’s try with 2GB task memory. Assuming 4x compression, the output files should be ~500 MB.

%%sql
CREATE TABLE
  IF NOT EXISTS prod.db.lineitem_part_year_2gb_intask_mem (
    l_orderkey BIGINT,
    l_partkey BIGINT,
    l_suppkey BIGINT,
    l_linenumber INT,
    l_quantity DECIMAL(15, 2),
    l_extendedprice DECIMAL(15, 2),
    l_discount DECIMAL(15, 2),
    l_tax DECIMAL(15, 2),
    l_returnflag STRING,
    l_linestatus STRING,
    l_shipdate DATE,
    l_commitdate DATE,
    l_receiptdate DATE,
    l_shipinstruct STRING,
    l_shipmode STRING,
    l_comment STRING
  ) USING iceberg PARTITIONED BY (YEAR (l_shipdate)) TBLPROPERTIES (
    'format-version' = '2',
    'write.spark.advisory-partition-size-bytes' = '2147483648'
  );

1

Setting in-memory size to 2 GB

%%sql
INSERT INTO
  prod.db.lineitem_part_year_2gb_intask_mem
SELECT * FROM prod.db.lineitem;

table_name = 'prod.db.lineitem_part_year_2gb_intask_mem'
print_file_sizes(table_name)

1

print_file_sizes is a function we define at setup

#	file_path	file_size_mb	writer_task
1	.../year=1996/00001.parquet	281.27	413
2	.../year=1998/00000.parquet	492.10	412
3	.../year=1994/00009.parquet	510.58	421
4	.../year=1993/00005.parquet	510.67	417

Warning

• Our executors need sufficient memory to be able to handle the 2GB per task requirement.

• Compressions ratios vary depending on your data, experiment.

Output files are mostly optimally sized.

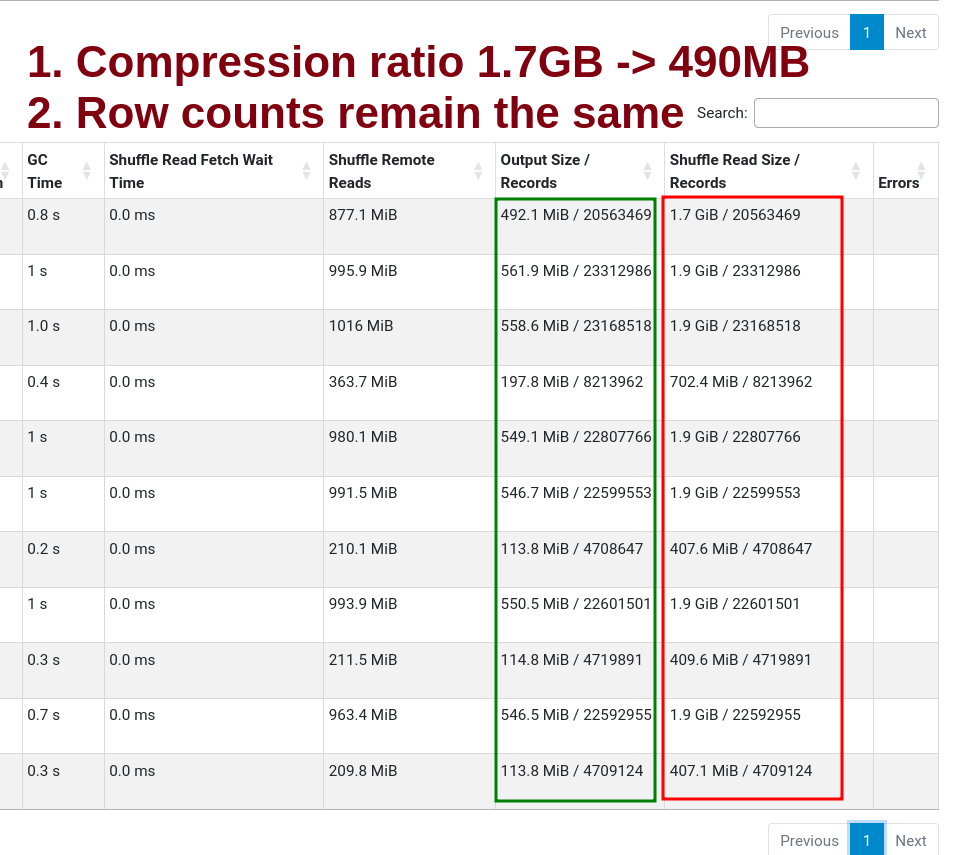

Compression

We can see some non-optimal files in the stages tab.

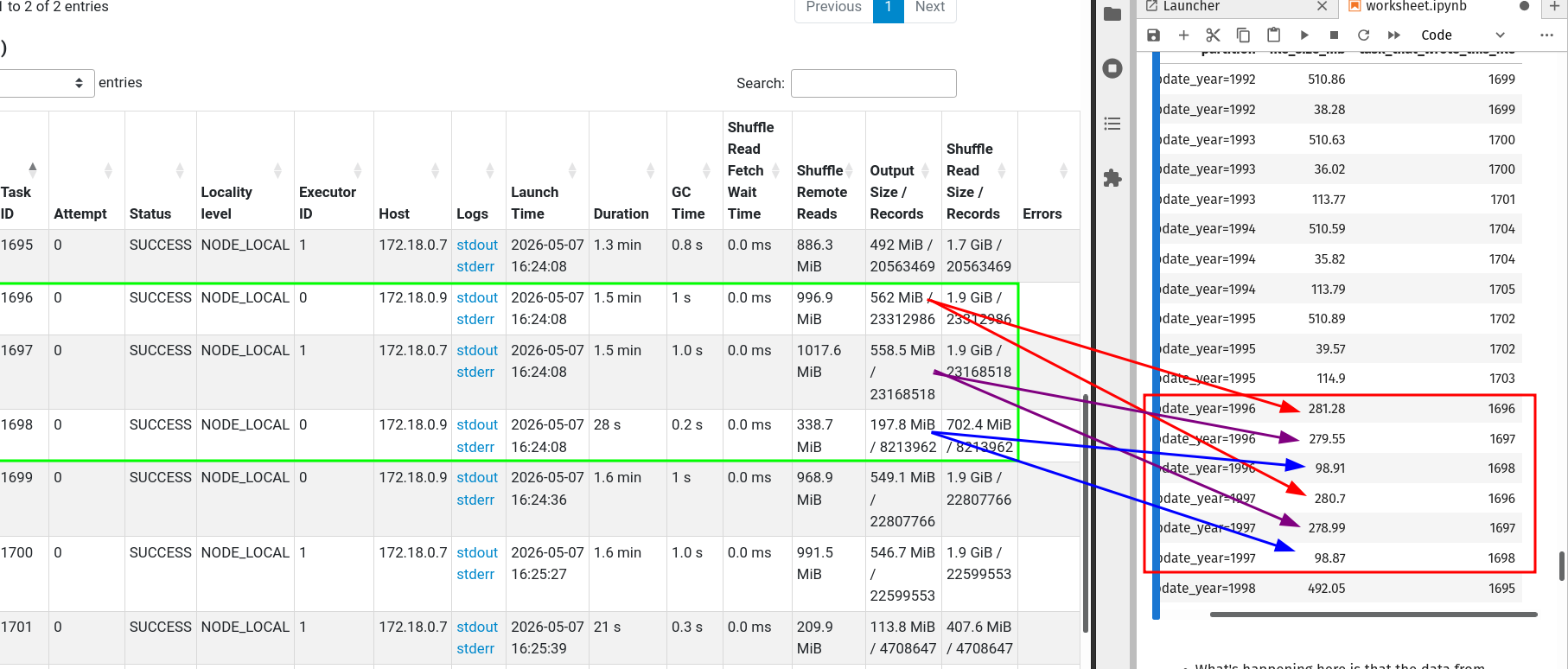

Iceberg writers handling data from mutliple partitions

Here is what’s happening.

Rows with different year(l_shipdate) are handled by the same writer, which gets written to separate files, leading to less than optimal file sizes.

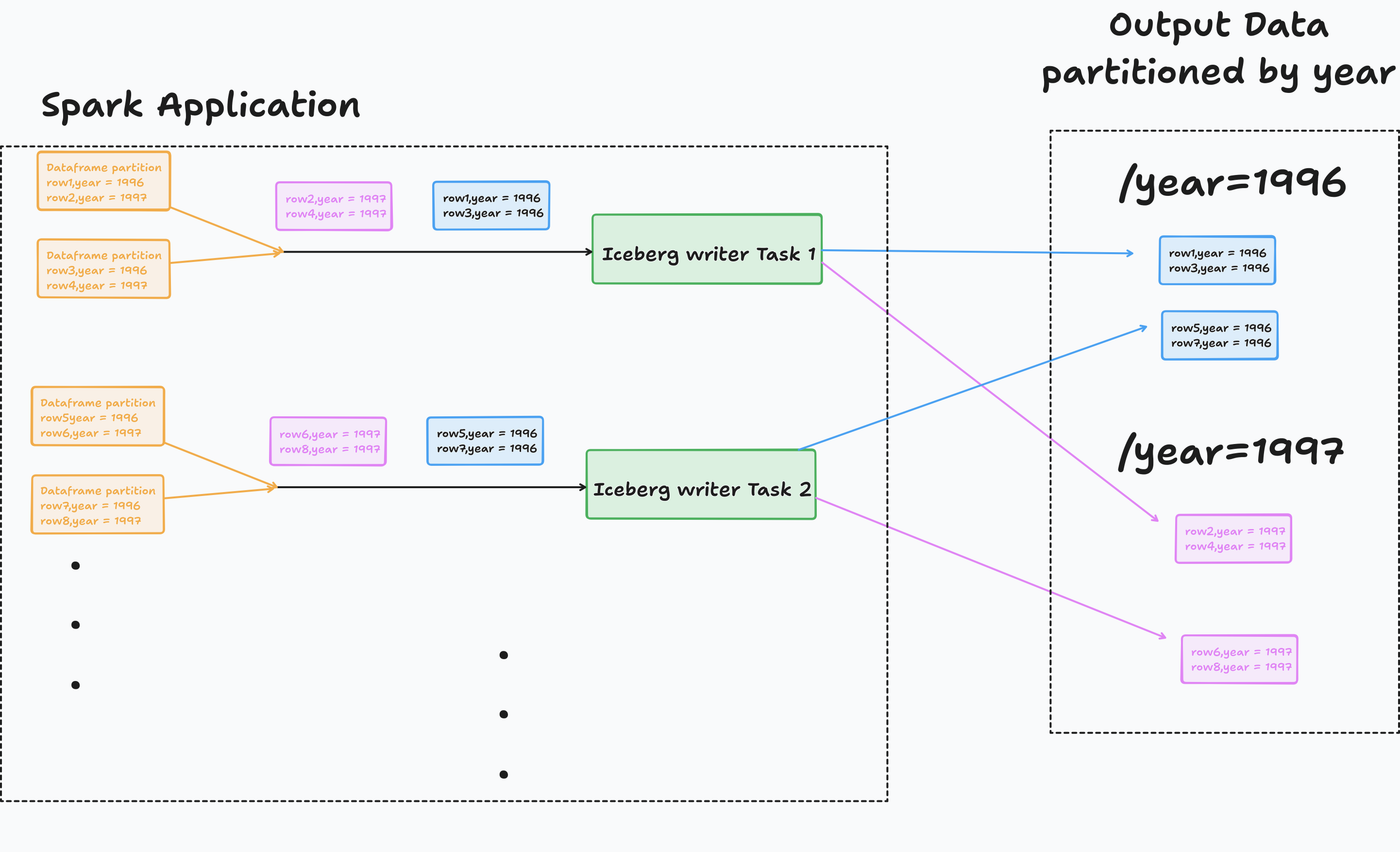

Iceberg writes writing to multiple partitions

Increase task memory and partition before insert

Partitioning before insert will fix this. Let’s see how.

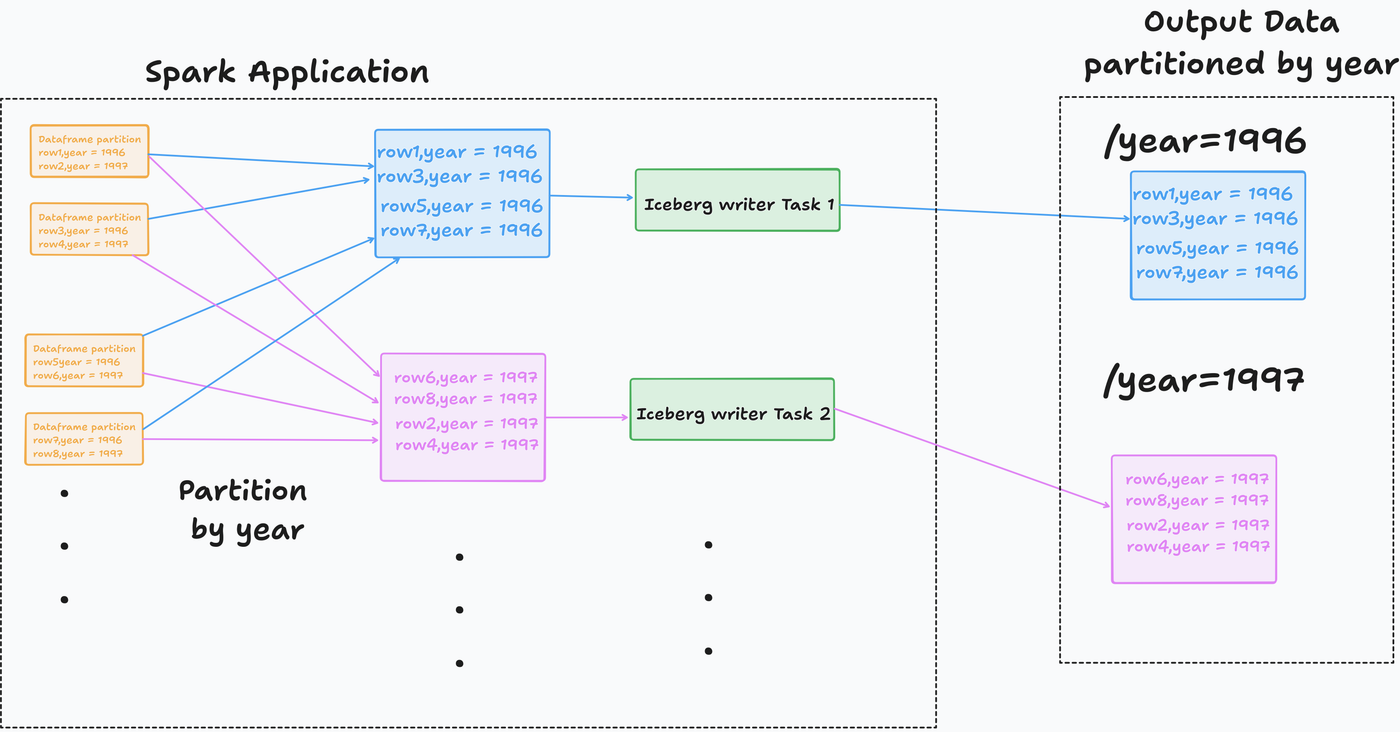

Partition & then write

Let’s partition data in Spark and then insert it into the table.

# This forces same-year rows to the same Icebreg write task
import pyspark.sql.functions as F

spark.table("prod.db.lineitem")\
  .repartition(F.year(F.col("l_shipdate"))) \
  .writeTo("prod.db.lineitem_part_year_2gb_intask_mem") \
  .overwritePartitions()

We can see that all the files are optimally sized.

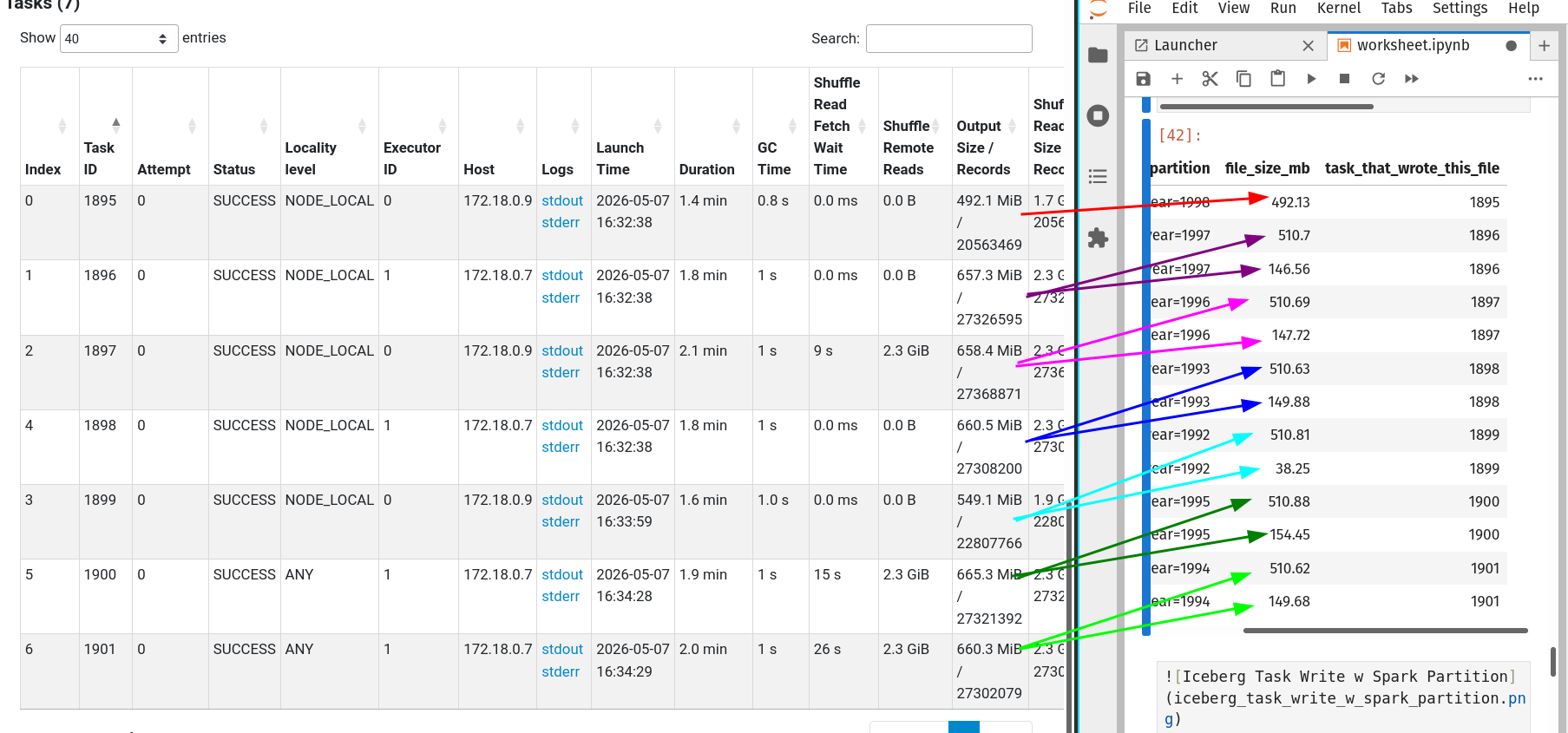

One partition data per iceberg writer with rollover

When an output file size exceeds 512MB, the Iceberg writer opens a new file (aka rollover).

Alternatives & future work

An alternative is using sort before writing to the output file. This is beneficial for filters on the sorted column(s) and also creates output files of optimal size.

In Iceberg, this can be done by

1. Setting write.distribution-mode to sort.
2. Setting a sort-order property
3. Sorting with Spark before writing to the output

Warning

Global sorting is extremely expensive as you shuffle and then sort per partition. Sorting is beneficial for columns with high cardinality.

As of Iceberg 1.10.0: “Future work in Spark should allow Iceberg to automatically adjust this (spark.sql.adaptive.advisoryPartitionSizeInBytes) parameter at write time to match the write.target-file-size-bytes.”

Iceberg docs

Vendors do this (& more)

In addition to file resizing, when using table formats, we need to clean up deleted data (preserved for history) & manifest files.

Vendors like Databricks automate these for you. And vendors like Snowflake have their own representation.

Conclusion

To recap, we saw

1. Why are many small files a problem
2. Using maintenance functions to optimally size files
3. Optimal file sizing how-tos for partitioned tables
4. How vendors (mostly) handle it automatically

Choose easy or cheap, you can’t have it both ways (yet). If you have a vendor, they take care of fixing the small files problem.

If not, you can use the Iceberg function rewrite_data_files in your pipeline or as a scheduled manitenance pipeline.

flowchart TD
    A[Vendor?] -->|Y| B[Check file sizes if you notice read performance drop]
    A -->|N| C[Stream ingestion?]
    C -->|Y| D[Schedule a maintenance job]
    C -->|N| E[You control the pipeline code?]
    E -->|Y| F[Can the pipeline afford extra runtime?]
    E -->|N| D
    F -->|Y| H[Run maintenance function as part of pipeline]
    F -->|N| D

Your future self and stakeholders will thank you.
